480 Tiller
Available configurations of Swoop 480 series:

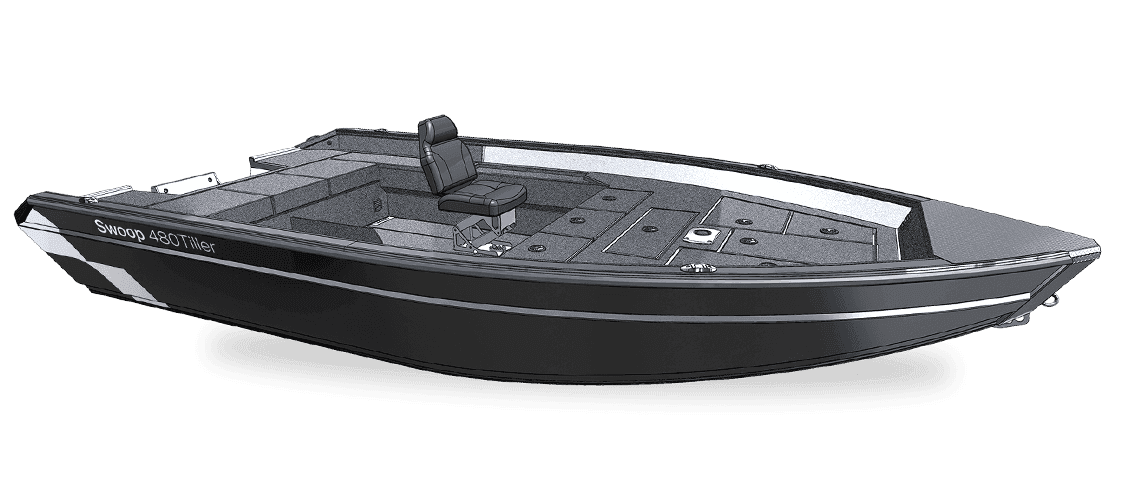

Boat Swoop 480 Tiller
The Swoop 480 Tiller is the simplest, most direct way to interact with a boat.
The tiller gives you full control with nothing in between. You feel the boat's behaviour instantly and steer with precision, without delay.
The entire space is open and working. Nothing gets in the way — just a clean platform where everything is within reach.
This format is especially well suited for manoeuvring, working in shallow water, or intensive daily use.
The Swoop 480 Tiller is when the boat becomes an extension of your actions.
Specifications
Standard equipment
- Aluminium hull
Marine alloy 5083 H111
- Exterior sides covered with KPMF™ hydrophobic film
Colour selection
- Swoop logo
Colour selection
- Raptor coating
Gunwale, recess, transom, console and windshield frames
- Marine-grade deck covering
- Transom preparation for outboard engine installation
4 mounting holes with installed bushings
- Deck and cockpit drainage system
- Sacrificial anode
- Dry lockers × 5
Four dry bow lockers and one central floor locker
- Stainless steel folding mooring cleat × 4
- Built-in rotary locker latch × 6
- Built-in fuel tank 70 L
- Attwood fuel tank filler
Quick-access filler with integrated vent valve
- Additional fuel tank vent valve
For quick refuelling
- Thor marine-grade fuel hoses (ISO 7840)
- Livewell 80 L
- Livewell pump
- Flow-Rite livewell system with remote valve switch
- Navigation lights
- LED lighting for lockers, cockpit and decks
- 12V onboard electrical system with fuse panel and battery disconnect switch
- Bilge pump
- Aluminium 6-switch vessel systems control panel
- Main battery disconnect switch
- Seats × 2
Helm and passenger seats
- Folding stern seats
- Swoop suspension pedestal (stainless steel) × 2
- Fishing seat base
- Gas strut for locker lid × 6
- Battery locker
Between stern seats
- Rod locker for 2 rods up to 2.7 m (port side)
- Rod locker for 2 rods up to 2.7 m (starboard side)
Optional equipment
Two upper holes
Additional cover element that closes off the stern recess, protecting the cockpit from rain, dirt, dust and animals during storage or transport
Additional fishing seat base installation
Folding stainless steel ladder integrated into the hull chine or under the stern platform, providing convenient water access without taking up cockpit space
Cockpit, side shelves, bow area
Replacement of standard plastic cup holders with stainless steel
